Quick Answer
Shop front frames support fixed glazing around a coordinated entrance. Confirm the glazing grid, door opening, profile finish and supply scope from the elevation before requesting a quotation.

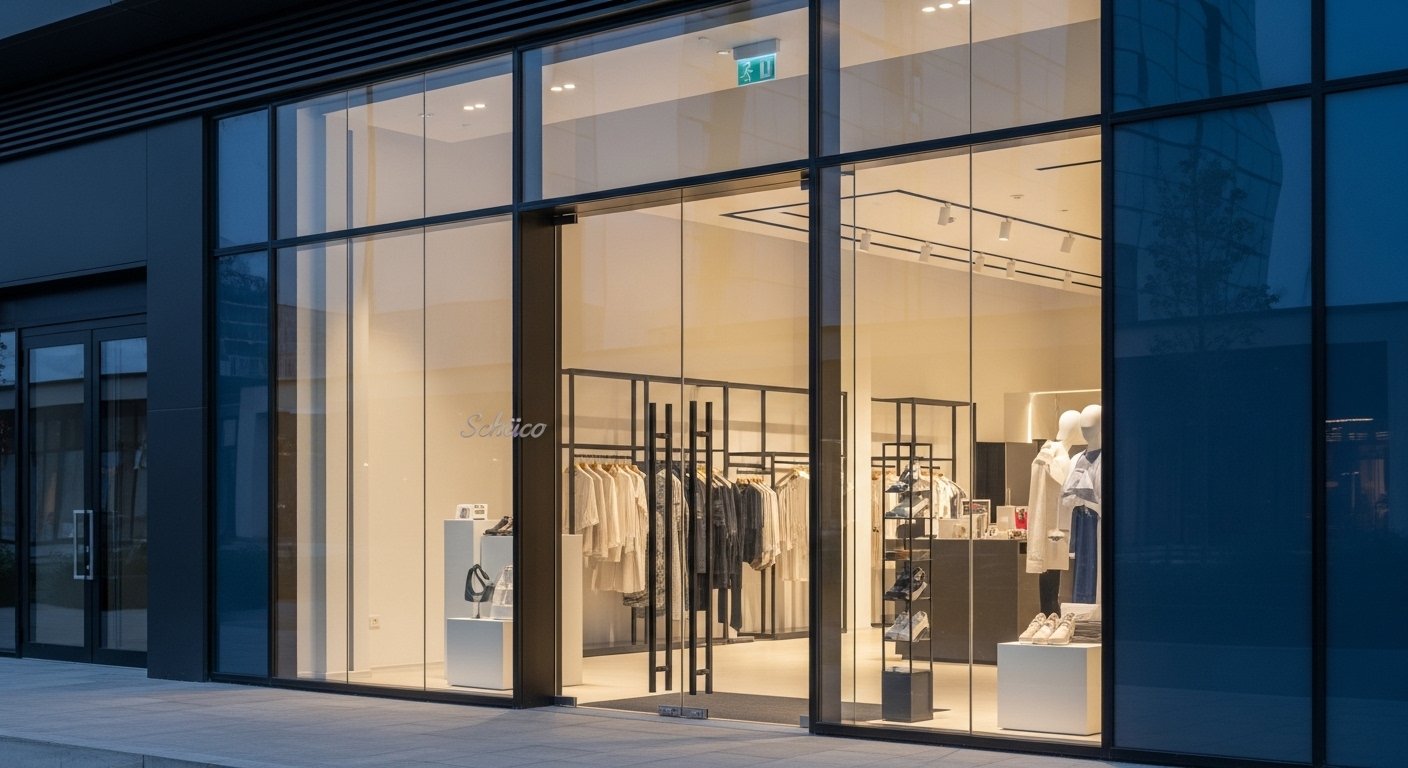

Aluminium Frames for Shop Fronts
An aluminium shop front frame supports fixed glazing and coordinates the entrance opening. The frame layout, glass panels, door operation and finish should be shown on the same elevation so the interfaces can be reviewed before fabrication.
For a shop front aluminium frame enquiry, send the opening width and height, glazing specification, door position and required clear access. Identify corner returns, signage interfaces and any fit-out restrictions. State whether the quotation should include frames only, glazing, door hardware or installation.
Where the entrance uses sliding shutters, review aluminium sliding doors for shop fronts. Larger facade grids have a different support arrangement; compare curtain wall mullions. Share the shop front elevation for a quotation.
Applications
Shop frame applications on retail programmes:
- Mall inline units -- full-height glazed fronts with shared mall interface.
- High-street retail -- corner and double-frontage shop entries.
- Podium retail at towers -- ground-floor glazed frontage to plaza.
- Food and beverage frontages -- openable sections with aluminium folding doors or sliders.
- Showroom displays -- large fixed glass with minimal frame read.
- Bank and clinic fronts -- security glass and lock hardware upgrades.
Shop Front Types
Retail frame families:
Floor-to-soffit display glass with minimal mullions.
Sliding or hinged entry within shop frame grid.
Dual elevation frame coordination.
Head and jamb connections to mall base build.
Impact-resistant build-up where brief requires.
Powder coat to tenant or architect palette.
Materials
Shop front materials on tenant drawing issue:
- 6063-T5 mullions and transoms -- retail grid sections.
- Entrance door sets -- coordinated hardware and locks.
- Glazing -- toughened / laminated display glass.
- Cladding interfaces -- transitions to mall or tower base build.
Technical Specifications
Project-specific values are confirmed on approved shop drawings -- not fixed catalogue SKUs.
| Material | Grade | Finish | Fixing Method | Application | Environment | Maintenance | Compliance |
|---|---|---|---|---|---|---|---|
| Mall inline front | 6063-T5 | Powder coat RAL | Mall slab / kerb fix | Inline retail unit | Interior mall / exterior plaza | Tenant handover clean | Mall design guide + project spec |
| High-street corner | 6063-T5 | Powder coat | Ground fix + head anchor | Corner retail | Exterior ground | Glass clean; check locks | Security glass if scheduled |
| Podium retail | 6063-T5 | Powder coat | Coordination with CW | Tower podium shop | Exterior | Facade maintenance plan | Interface with curtain wall drawing |
Manufacturing Process
Shop frames fabricated at Hyderabad to tenant approved drawings:
- Drawing lock -- opening sizes, profile stack and hardware approved.
- Extrusion cut -- frames and sashes to schedule.
- Assembly -- hardware, gaskets and glazing prep.
- QC -- operation and finish check.
- Dispatch -- protected packing per crate.
Quality Control
- Extrusion profile and finish checked to PO.
- Hardware kit verified per opening.
- Glazing gasket and bead check.
- Operation test before dispatch where pre-assembly scope applies.
- Packing inspection.
Advantages
- Hyderabad production facility -- extrusion fabrication and assembly.
- Integrated facade context -- coordination with aluminium doors and windows and curtain wall mullions.
- Shop drawing issue -- consultant approval before fabrication freeze.
- RAL finish matching -- campus colour consistency across openings.
- Nationwide supply -- phased dispatch to site programme.
Industries We Serve
Each industry brings different code, hygiene, load and finish priorities. BOQ review and shop drawings confirm the correct system family before fabrication for programmes across India.
Shop Front Frame: Check the Interfaces Before Fabrication
The frame quotation should follow a dimensioned elevation and opening schedule. Overall width and height alone do not identify the fixed panes, door clearances or fixing details.
- Fixed glazing: identify panel divisions, glass build-up, beads, gaskets and setting details.
- Entrance: mark the operating leaves, required clear access, lock positions and threshold level.
- Surrounding construction: show head, jamb and sill substrates, tolerances, sealant joints and signage interfaces.
- Exposure: identify external entrances so drainage and weather-sealing details can be reviewed.
- Supply boundary: state whether frames, glass, door hardware, transport and installation belong in the same order.
For moving entrance panels, compare aluminium sliding doors and folding door arrangements. The aluminium doors and windows range covers related opening systems.
Supply is coordinated from Hyderabad for projects across India. Delivery dates and installation responsibilities are agreed against the project location and scope.
Procurement Support
- BOQ review -- line items, quantities, missing accessories and scope gaps checked before order release.
- Commercial quotation -- supply inclusions and exclusions clarified for EPC / PMC files.
- Shop drawing issue -- fabrication drawings for consultant approval before factory freeze.
- Phased dispatch -- releases aligned to slab handover, fit-out or facade programme.
- Documentation pack -- submittals and handover notes suitable for commercial close-out.
Engineering Consultation
Engineering consultation supports profile and hardware selection:
- System selection -- profile, glass build-up, hardware grade and finish matched to the brief.
- Load and compliance discussion -- NBC 2016 and IS references confirmed on project drawings only.
- Interface coordination -- civil, facade, waterproofing and interior trades sequenced on drawings.
- Alternate proposals -- value-engineering options where invited without compromising approved intent.
Installation Guidance
Installation follows approved facade or opening details:
- Confirm substrate readiness, line and level before fixing.
- Set primary frames or hardware to approved centres; torque anchors per specification.
- Protect finished surfaces from concurrent trades until handover inspection.
- Complete adjustment, sealing and cleaning per the approved detail sheet.
Maintenance
- Routine cleaning -- mild detergent on metal; non-abrasive cleaners on glass.
- Seasonal inspection -- fixings, seals and drainage paths checked after monsoon.
- Finish care -- touch-up protocol per O and M note issued with the order.
- Damage protocol -- isolate compromised panels or guards; replace per safety procedure.
FAQs
1. Shop frames vs curtain wall on podium?
curtain wall mullions covers tower facade grid. Shop frames cover ground retail glazed fronts -- often interfaced at podium level.
2. Do you supply entrance doors within the frame?
Yes -- sliding or hinged entry sets coordinated within shop front grid per drawing.
3. Tenant fit-out coordination?
Shop drawing issue aligned to mall base build completion and tenant programme.
4. Security glass for banks?
Laminated or thicker build-up where security specification schedules.

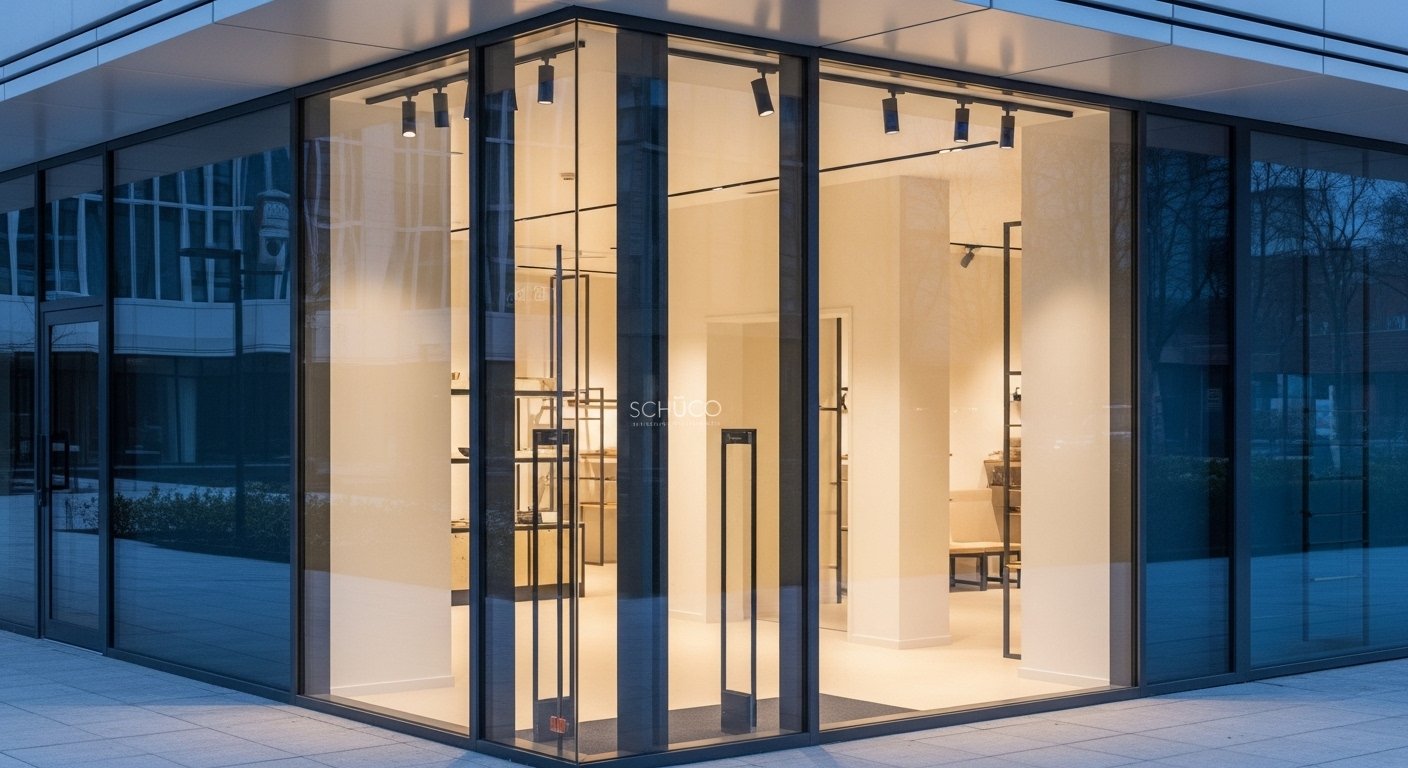

5. Corner unit coordination?
Dual elevation shop drawings with consistent mullion grid and single RAL finish.
6. Can you match tower CW colour?
RAL coordinated with podium curtain wall mullions and aluminium doors and windows on unified mixed-use packages.
7. Mall design guide compliance?
Details reviewed against mall technical guide before fabrication release.
8. Phased mall delivery?
Unit-by-unit dispatch aligned to mall handover sequence.
9. How are shop front frames coordinated with entrance doors?
Coordinate the fixed glazing, door opening, frame interfaces and hardware on one elevation. Confirm access width, glass specification and finish before fabrication.
10. Who supplies aluminium shop frames manufacturer India for commercial projects?
Railings India manufactures and supplies aluminium shop frames manufacturer India from our Hyderabad production facility for builders, developers, EPC contractors, PMC consultants and facade teams across India.
11. Do you provide shop drawings before fabrication?
Yes. Shop drawings are issued for consultant approval before glass processing, extrusion cutting or steel fabrication freeze on commercial orders.
12. Can you review our BOQ before we place the order?
Yes. BOQ review is the recommended first step -- we check profile references, quantities, fixing typology and missing line items before order release.
13. Do you supply nationwide from Hyderabad?
Yes. Factory fabrication and engineering documentation are coordinated from our Hyderabad production facility with dispatch to project sites across India. We do not claim a branch in every city.
14. What NBC and IS references apply?
NBC 2016 guard height and opening intent, IS 875 where exterior wind loads are scheduled, and glass or metal standards as called on the project drawings -- confirmed per programme, not as generic catalogue claims.
15. How do I request a quotation?
Share drawings or a BOQ via Get a Quote or Contact Us. Note system family, finish preference and whether BOQ review is needed.
Related Products
Request an Aluminium Shop Front Quotation
Send shop front elevations, opening sizes, fixed-glazing layouts, entrance-door operation, glass specification, hardware and finish schedules.
Include the project location, quantities, required delivery sequence and whether the order covers supply, installation or both. The quotation can then state its inclusions, exclusions and items requiring drawing clarification.
